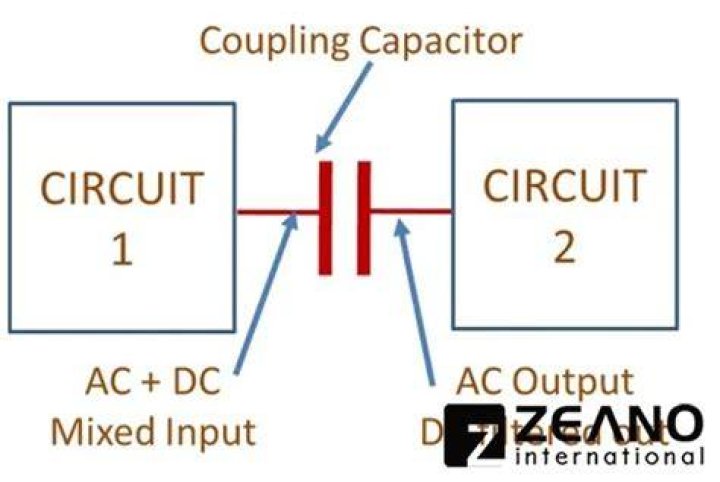

A coupling capacitor is a capacitor whichis used to couple or link together only the AC signal from onecircuit element to another. The capacitor blocks the DCsignal from entering the second element and, thus, only passes theAC signal..
Besides, what is coupling capacitor in an amplifier?
"In analog circuits, a coupling capacitoris used to connect two circuits such that only the AC signal fromthe first circuit can pass through to the next while DC is blocked.This technique helps to isolate the DC bias settings of the twocoupled circuits."
One may also ask, what is the purpose of a capacitor in an amplifier? To prevent the DC signal from appearing on the outputdevice, a coupling capacitor is added in series with theload. Coupling capacitors are essential components inamplifier circuits. They are used to prevent interference ofa transistor's bias voltage by AC signals.
Similarly, you may ask, how do you calculate the value of coupling capacitor?
Multiply this number by 1/10 to find the minimumvalue of the coupling capacitor's impedance.Determine the cutoff frequency you want for the high passfilter that is formed with the coupling capacitor and theinput impedance of the circuit it drives. This value willdepend on the specific application.
What is the effect of bypass capacitor?
A bypass capacitor basically bypasses AC noisethat may be on a DC signal, filtering out of AC so that a clean,pure DC signal goes through without several AC ripples. Acapacitor employed to conduct an alternating current aroundas a component or group of components.
Related Question Answers
How do you test a coupling capacitor?
You must determine whether the coupling capacitoris leaky. A quick way to test the capacitor is tounplug the output tubes, connect the (-) lead of your multimeter tochassis ground, and use the (+) lead of your multimeter to measurethe voltage on the socket contact that corresponds to thegrid.Which capacitor is used for high frequency?
Mica capacitors are known as silver micacapacitors, offer high precision, reliability andstability. They are available in small values and used inhigh frequency tuned circuit such as filters and oscillatorswhere losses are less. They have low resistive and inductiveloses.What is capacitor and why it is used?
Capacitors are devices which store electricalcharge. They are a basic component of electronics and have a hostof various applications. The most common use for capacitorsis energy storage. Additional uses include power conditioning,signal coupling or decoupling, electronic noise filtering, andremote sensing.What is blocking capacitor?
noun Electronics.a capacitor used for stopping the passage ofdirect current from one circuit to another while allowingalternating current to pass.Why bypass capacitor is used?
If the voltages swing too much, the circuit may operateincorrectly. For most practical purposes, a voltage that fluctuatesis considered an AC component. The function of the bypasscapacitor is to dampen the AC, or the noise. Another termused for the bypass capacitor is a filtercap.How do capacitors reduce noise?
The proper selection and use of bypass capacitorsis the most effective way of reducing unwanted noiseand interference in an electronics circuit. Connecting the correctcapacitor between the power supply and ground pins creates alow impedance path for the AC noise.What is meant by coupling capacitor?
A coupling capacitor is a capacitor whichis used to couple or link together only the AC signal from onecircuit element to another. The capacitor blocks the DCsignal from entering the second element and, thus, only passes theAC signal.Why decoupling capacitor is used?
A decoupling capacitor is a capacitor usedto decouple one part of an electrical network (circuit) fromanother. Noise caused by other circuit elements is shunted throughthe capacitor, reducing the effect it has on the rest of thecircuit.Why do we use emitter resistors?
The aim of an AC signal amplifier circuit is tostabilise the DC biased input voltage to the amplifier and thusonly amplify the required AC signal. This stabilisation is achievedby the use of an Emitter Resistance which providesthe required amount of automatic biasing needed for a commonemitter amplifier.What does impedance mean?
Impedance, denoted Z, is an expression of theopposition that an electronic component, circuit, or system offersto alternating and/or direct electric current.Impedance is avector (two-dimensional)quantity consisting of two independentscalar (one-dimensional) phenomena: resistance andreactance.
