PXE Boot Process
  • The device sends out a DHCP broadcast and states that it needs to PXE boot (you've often initiated this request by hitting F12 on the device as it starts up)
  • The DHCP server picks up this broadcast and replies with a suggested IP address to use.
  • The device then replies to the server and uses the provided address.

.

Keeping this in view, what does pixie boot mean?

Pre-Boot Execution Environment

Similarly, does PXE boot require DHCP? PXE does not come with a dedicated boot protocol. It is simply DHCP packets extended with additional DHCP options. It will only respond if it gets a DHCP offer including option 60 which means: I am PXE capable and able to send out boot server and boot file information.

Also asked, how do you set up a pixie boot?

  1. Step 1: Install and configure DNSMASQ Server.
  2. Step 2: Install SYSLINUX Bootloaders.
  3. Step 3: Install TFTP-Server and Populate it with SYSLINUX Bootloaders.
  4. Step 4: Setup PXE Server Configuration File.
  5. Step 5: Add CentOS 7 Boot Images to PXE Server.
  6. Step 6: Create CentOS 7 Local Mirror Installation Source.

What is UEFI PXE boot?

PXE boot runs over a network of computers and may or may not include internet access. The difference between Unified Extensible Firmware Interface (UEFI) boot and legacy boot is the process that the firmware uses to find the boot target. Legacy boot is the boot process used by basic input/output system (BIOS) firmware.

Related Question Answers

What is f12 boot menu?

Common keys for accessing the Boot Menu are Esc, F2, F10 or F12, depending on the manufacturer of the computer or motherboard. The Boot Menu allows a user to select what device to load an operating system or application from as the computer is booting.

How do I boot a computer from a network?

Go to the computer where you want to install Windows and enter its BIOS. Make sure networking booting is enabled. This setting can be named "Boot from the network" or "Boot from PXE". Then, start the computer and press the required key to bring up the Boot Menu.

How do I boot into PXE mode?

How to Boot Into PXE
  1. Power on or restart your computer.
  2. Navigate to the network card settings with the keyboard.
  3. Toggle the "LAN BOOT ROM" option to "Enabled." Your motherboard may refer to this simply as "PXE."
  4. Navigate to the boot settings with they keyboard.
  5. Press "F10" to save the settings and exit the BIOS.

What does UEFI mean?

Unified Extensible Firmware Interface (UEFI) is a specification for a software program that connects a computer's firmware to its operating system (OS). UEFI is expected to eventually replace BIOS. Like BIOS, UEFI is installed at the time of manufacturing and is the first program that runs when a computer is turned on.

How do I get my PXE boot to work?

PXE Boot Process
  1. The device sends out a DHCP broadcast and states that it needs to PXE boot (you've often initiated this request by hitting F12 on the device as it starts up)
  2. The DHCP server picks up this broadcast and replies with a suggested IP address to use.
  3. The device then replies to the server and uses the provided address.

How do I stop BIOS from booting?

Enabling or disabling network boot for a NIC
  1. From the System Utilities screen, select System Configuration > BIOS/Platform Configuration (RBSU) > Network Options > Network Boot Options and press Enter.
  2. Select a NIC and press Enter.
  3. Select a setting and press Enter.
  4. Press F10.

What port does PXE boot use?

By default, Bare Metal OS Deployment Servers and targets use the following ports for communication: Bare Metal Server: DHCP : port 67 UDP. PXE BINL : port 4011 UDP.

How do you get out of a PXE boot?

What does the message Exiting PXE Boot ROM mean?
  1. Restart the system.
  2. Use the arrow keys to navigate Boot or Advanced BIOS features.
  3. Refer to on screen instructions to set the first device to IDE0, Hard Disk or SATA0.
  4. Press the F10 key to save changes and restart the system.

How do I create a boot image for my network?

To create the image for a PXE boot
  1. On the Toolkit Select panel, for Image type, select PXE Image.
  2. On the Configuration Details panel, select Copy to WinPE image.

How can I boot from USB?

Boot from USB: Windows
  1. Press the Power button for your computer.
  2. During the initial startup screen, press ESC, F1, F2, F8 or F10.
  3. When you choose to enter BIOS Setup, the setup utility page will appear.
  4. Using the arrow keys on your keyboard, select the BOOT tab.
  5. Move USB to be first in the boot sequence.

What is tftpd32?

TFTPD32 is free, open-source TFTP server that is also includes a variety of different services, including DHCP, TFTP, DNS, and even syslog and functions as a TFTP Client as well. TFTPD32 also comes as a x64 version that gets installed as a windows service.

How do I configure a network boot server?

Launch the PXE boot server software - CCBoot, menu "Options" -> "Options Wizard" and configure step by step as bellow:
  1. Figure 3. You need to select the correct local IP address as "DHCP Server IP".
  2. Figure 4. Set "Server IP Address".
  3. Figure 5. Keep default values in "Server Cache Settings".
  4. Figure 6.

Is bootp required for PXE?

The protocols or services needed for PXE to function include DHCP, DNS, TFTP, BOOTP Client, BOOTP Server, Time Protocol, TACACS, NetBIOS, and NetBIOS Datagram. These protocols and the associated UDP ports will need to have broadcast capability enabled.

How do I change my PXE boot server?

Open the PXE Configuration utility.
  1. b. On the DS tab, change the Deployment Server IP address field to the new Deployment Server IP.
  2. c. On the Boot Menu tab, select the Linux Managed boot menu option and click Edit.
  3. d. Click Edit Boot Image and the Altiris Boot Disk Creator opens.
  4. e.
  5. f.
  6. g.
  7. h.
  8. i.

What does bootable USB mean?

USB boot is the process of using a USB storage device to boot or start a computer's operating system. It enables the computer hardware to use a USB storage stick to get all essential system booting information and files rather than the standard/native hard disk or the CD drive.

How long does PXE boot take?

45min

What is DHCP in networking?

Dynamic Host Configuration Protocol (DHCP) is a protocol for assigning dynamic IP addresses to devices on a network. With dynamic addressing, a device can have a different IP address every time it connects to the network. In some systems, the device's IP address can even change while it is still connected.

Where is the PXE programming code stored?

Where is the PXE programming code stored that is used to boot a computer when it is searching for an OS on the network? The computer boots to the Preboot eXecution Environment or Pre-Execution Environment (PXE) that is contained in the UEFIor BIOS code on the motherboard.

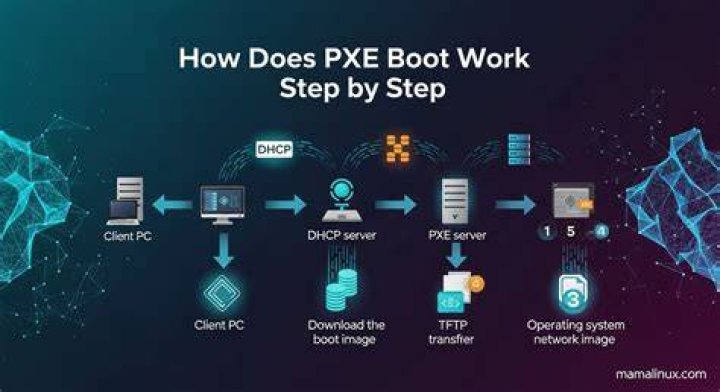

What is PXE and how it works?

In computing, the Preboot eXecution Environment (PXE, most often pronounced as pixie) specification describes a standardized client-server environment that boots a software assembly, retrieved from a network, on PXE-enabled clients.
