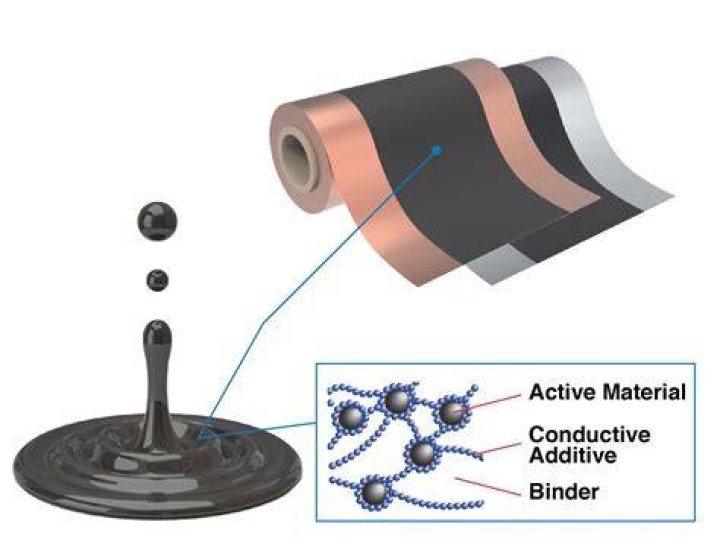

An electrode is a solid electric conductor that carries electric current into non-metallic solids, or liquids, or gases, or plasmas, or vacuums. Batteries contain a variety of electrodes, depending on the battery type. Lead-acid batteries are based on lead electrodes.

.

Hereof, do batteries have electrodes?

There are two electrodes in every battery. Both are made of conductive materials, but they serve different roles. The other electrode, known as the anode, connects to the negative end of the battery and is where the electrical current enters (or electrons leave) the battery during discharge.

Similarly, what are the types of electrodes? There are two types of electrodes, cathodes, and anodes. Cathode attracts the positively charged cations. Anode attracts negatively charged anions. Electrodes are commonly made of metals such as platinum and zinc.

People also ask, what is the anode of a battery?

The anode is the negative electrode of a primary cell and is always associated with the oxidation or the release of electrons into the external circuit. In a rechargeable cell, the anode is the negative pole during discharge and the positive pole during charge.

What are the electrodes in a lithium ion battery?

Similar to the lead- and nickel-based architecture, lithium-ion uses a cathode (positive electrode), an anode (negative electrode) and electrolyte as conductor. The cathode is a metal oxide and the anode consists of porous carbon.

Related Question Answers

How do you bring old batteries back to life?

Bring Dead Lead Acid Battery to Live Again
  1. Step 1: Preparing the Battery. 3 More Images.
  2. Step 2: Fill the Water Inside the Battery.
  3. Step 3: Mix Water With Acid and Charging.
  4. now pull the wasted water from the top of 3 holes by the syringe and let the battery charging.
  5. 39 Discussions.

Why do batteries die?

When the active material in the plates can no longer sustain a discharge current, a battery "dies". Normally a car (or starting) battery "ages" as the active positive plate material sheds (or flakes off) due to the normal expansion and contraction that occurs during the discharge and charge cycles.

What is the C rate of a battery?

The C-rate is a measure of the rate at which a battery is being charged or discharged. It is defined as the current through the battery divided by the theoretical current draw under which the battery would deliver its nominal rated capacity in one hour. It has the units h−1.

How can I make a homemade battery?

Building A 1.5 Volt BatterySupplies: aluminum can, copper wire/cord, water, bleach, cup. Cut the can along its side and flatten it out, roll up the edge of the can into a small aluminum bar. Fill the cup about halfway with water, add a teaspoon of bleach and mix with a spoon.

What chemicals are in batteries?

Batteries are made from a number of different materials. These materials include acid, lead, nickel, lithium, cadmium, alkaline, mercury and nickel metal hydride. When batteries are not properly disposed of the casing can disintegrate and the toxic chemicals within can leach into the surrounding environment.

Is anode always positive?

In a galvanic (voltaic) cell, the anode is considered negative and the cathode is considered positive. This seems reasonable as the anode is the source of electrons and cathode is where the electrons flow. However, in an electrolytic cell, the anode is taken to be positive while the cathode is now negative.

What is the difference between anode and cathode?

Difference Between Anode and Cathode. Anode and cathode are two terms that are often used interchangeably with positive and negative in batteries. The anode, by definition, is the electrode where electricity flows into. In contrast, the cathode is the electrode where the electricity flows out of.

What is the symbol of anode and cathode?

The positive side is called the anode, and the negative one is called the cathode. The diode circuit symbol, with the anode and cathode marked. Current through a diode can only flow from the anode to the cathode, which would explain why it's important for a diode to be connected in the correct direction.

What makes a good anode and cathode?

The Anode is the negative or reducing electrode that releases electrons to the external circuit and oxidizes during and electrochemical reaction. The Cathode is the positive or oxidizing electrode that acquires electrons from the external circuit and is reduced during the electrochemical reaction.

What does an anode do?

The role of the sacrificial anode rodThe rod is screwed into the top of your water heater and protects your water heater from rusting. When the tank is filled with water the anode rod sacrifices itself to protect the exposed steel of the water heater, through a method called electrolysis.

What makes a battery work?

A battery is a device that stores chemical energy and converts it to electrical energy. The chemical reactions in a battery involve the flow of electrons from one material (electrode) to another, through an external circuit. The flow of electrons provides an electric current that can be used to do work.

What do you mean by anode?

An anode is the electrode in a polarized electrical device through which current flows in from an outside circuit. Cathodes get their name from cations (negatively charged ions) and anodes from anions (positively charged ions). In a device that consumes electricity, the anode is the charged positive electrode.

What is anode made of?

The anode is made from a metal alloy with a more "active" voltage (more negative electrochemical potential) than the metal of the structure it is protecting (the cathode).

How does a battery work anode cathode?

Anode and CathodeThe electrode of a battery that releases electrons during discharge is called anode; the electrode that absorbs the electrons is the cathode. The battery anode is always negative and the cathode positive. This appears to violate the convention as the anode is the terminal into which current flows.

What are the three types of electrodes?

Types of Electrode: 4 Types (With Diagram) ADVERTISEMENTS: This article throws light upon the four types of electrode used in electrochemical techniques. The four types of electrode are: (1) The pH Electrode (2) Ion Selective and Gas Sensing Electrodes (3) The Clark Oxygen Electrode and (4) The Leaf Disc Electrode.

What is the negative electrode called?

The negatively charged electrode in electrolysis is called the cathode . The positively charged electrode in electrolysis is called the anode . Negatively charged ions move towards the anode.

What is basic electrode?

Basic or low hydrogen Electrode CoatingThe basic electrode coating is made up of calcium carbonates and fluorite. This coated electrodes must satisfy the required mechanical properties of the steels which it is intended to weld (tensile, impact strength, CTOD, creep, etc.).

What are the uses of electrodes?

Electrodes are also used to measure conductivity. Some of the other uses include: Electrodes are used in different battery types, electroplating and electrolysis, welding, cathodic protection, membrane electrode assembly, for chemical analysis, and Taser electroshock weapon.

What are electrodes in the body?

The body contains fluids with ions that allow for electric conduction. This makes it possible to use electrodes on the surface of the skin to detect electrical activity in and around the heart and use an electrocardiograph to record the activity.
