In respect to this, what is the purpose of the 3rd angle projection symbol?
Notice how the symbol for third angle orthographic projection has been added and the paper has a title block and borderline. Carefully study the symbols shown below. Normally when drawing in first or third angle projection a symbol is drawn which clearly shows which angle of projection has been used.
Secondly, where is 3rd angle projection used? Basics of First and Third Angle Projection The object is placed in the first quadrant for the first angle projection. United States and Australia uses the Third Angle Projection method as their default projection system. The object is placed in the third quadrant for the third angle projection.
Subsequently, question is, why do we use 1st angle and 3rd angle projection?
To sum up, orthographic projection system is used to draw a three dimensional object in 2D plane. In First angle projection, the object lies in between observer and plane of projection. Whereas in the third angle projection, projection plane lies in between observer and Object.
What are the standard views used in a 3rd angle projection?
Third angle projection is one of the methods of orthographic projection used in technical drawing and normally comprises the three views (perspectives): front, top and side.
Related Question Answers
What is 1st & 3rd Angle Projection?
In the first angle projection system, the object placed in the first quadrant and in third angle projection system the object placed in the third quadrant. In 1st angle, the object is between the observer and the plane of projection. In 3rd angle, the plane is between the observer and the object.What is 1st angle projection?
First angle projection is a method of creating a 2D drawing of a 3D object. It is mainly used in Europe and Asia and has not been officially used in Australia for many years. In Australia, third angle projection is the preferred method of orthographic projection. Note the symbol for first angle orthographic projection.What is 3rd angle of projection?
Third Angle projection is a method of orthographic projection which is a technique in portraying a 3D design using a series of 2D views.Where is 1st angle projection used?
Explanation: The observer is always at the right side top end. So as the observer watches the object comes first and then the projection plane as the object in the 1st quadrant in 1st angle projection.What is Angle Projection?
Answer: The angle at which an observer draw an object to convert it from 3D to 2D plane such as real object image to a plane paper is known as angle of projection.Who uses first and third angle projection?
First-angle is used in most of the world. Third-angle projection is most commonly used in America, Japan (in JIS B 0001:2010); and is preferred in Australia, as laid down in AS 1100.What is a projection view?
A projection view is a special view for hiding fields from a single basis table. An SQL view is not created on the database. No selection conditions can be specified for a projection view. Projection views can be used to access pooled table or cluster tables as well as transparent tables.What is isometric scale?
Isometric Scale. Isometric prjection is drawn using Isometric scale, which converts true lengths into isometric lengths which are foreshortened. (“Edges of an object are foreshortened” means that “the edges are cause to appear as if shortened”.)What is 3rd angle?
Third Angle Projection is commonly used in United States of America. The difference or comparison between First Angle Projection and Third Angle Projection is well described in next chapter. The object is imagined to be in third quadrant. The plane of projection lies between the observer and object.What is difference between first angle and third angle drawing?

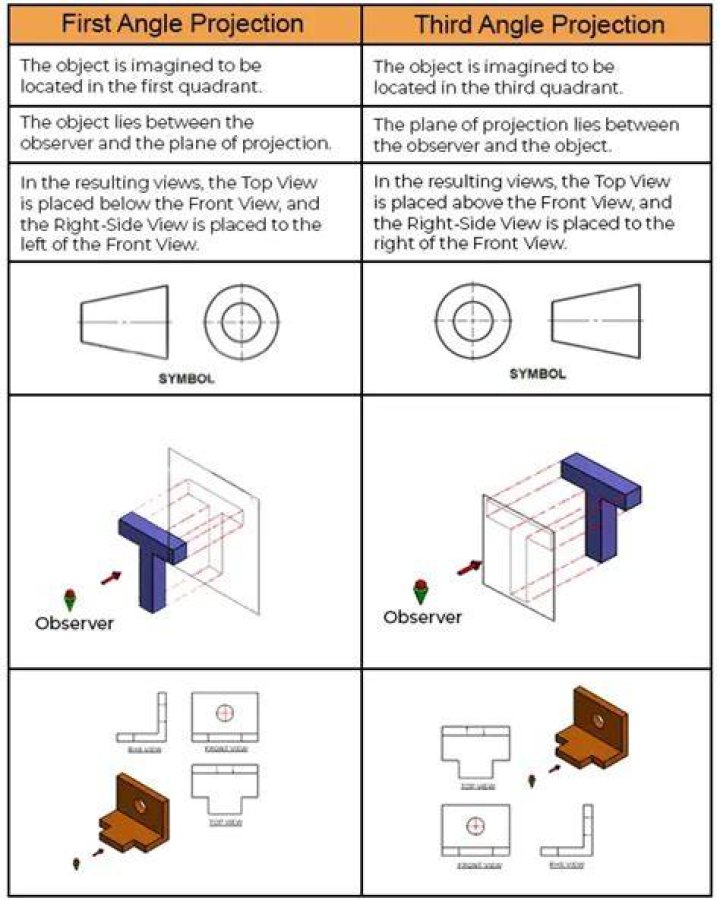

For the first angle projection, place the object in the first quadrant and in the third quadrant for the third angle projection. The object is placed between the plane of projection and observer for the first angle projection and between the object and observer for the third angle projection.What is difference between isometric and orthographic?
An isometric drawing looks like an isometric projection but all its lines are parallel to the three major axes. Orthographic drawings show a three-dimensional object using several two dimensional views of the object.What is 2nd angle projection?
In 2nd and 4th angle projection system, the top and front views are overlap to each other. In 2nd angle projection system, the plane is in between object and observer. When we turn the adjacent plane by 90 degree to see the top view, the front and top views are overlap to each other.How do you draw a first angle projection?
Drawing a first angle orthographic projection- Step 2 – Draw a 45º line from the front elevation box.
- Step 3 – Draw the front elevation in its box.
- Step 4 – Project lines from the front elevation to construct the plan.
- Step 5 – Project lines from the front elevation to construct the end elevation.
- Step 6 – The lines defining each view are then darkened.
- EXERCISES.
