If two or more components are connected in parallel they have the same potential difference (voltage) across their ends. The potential differences across the components are the same in magnitude, and they also have identical polarities. The same voltage is applicable to all circuit components connected in parallel.

.

Hereof, why does current vary in a parallel circuit?

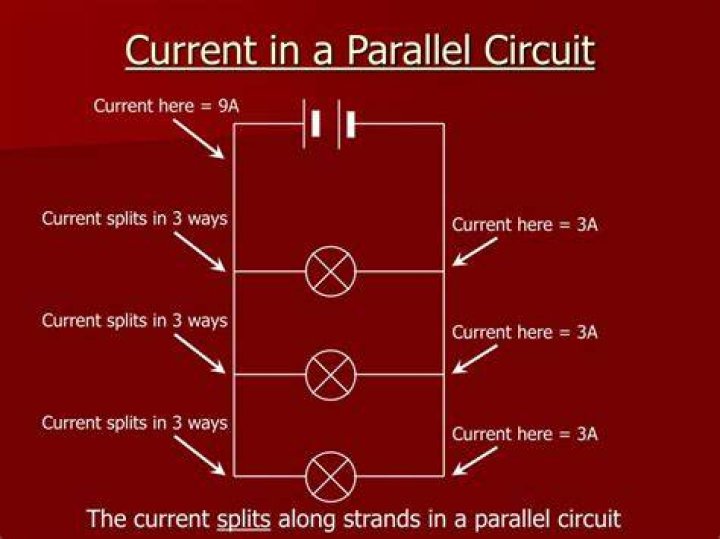

The current along the branch with the smallest resistance will be larger than the branch with higher resistance. The total current in the circuit must remain constant (so that charge is not created/lost). So the sum of the currents in the parallel branches will always be equal to the current before the junction.

Additionally, what is the difference of current flow between series and parallel circuit? The major difference is that the series circuits have the same amount of current flow through all the components placed in it. On the other hand, in parallel circuits the components are placed in parallel with each other. This circuit splits the current flow.

Considering this, is current different in parallel circuits?

A Parallel circuit has certain characteristics and basic rules: A parallel circuit has two or more paths for current to flow through. Voltage is the same across each component of the parallel circuit. The sum of the currents through each path is equal to the total current that flows from the source.

Does current decrease in a parallel circuit?

Answers: As more and more resistors are added in parallel to a circuit, the equivalent resistance of the circuit decreases and the total current of the circuit increases. Adding more resistors in parallel is equivalent to providing more branches through which charge can flow.

Related Question Answers

Is current constant in parallel?

Components connected in parallel are connected along multiple paths so that the current can split up; the same voltage is applied to each component. In a parallel circuit, the voltage across each of the components is the same, and the total current is the sum of the currents flowing through each component.

What is an example of a series circuit?

An example of a series circuit is a string of Christmas lights. If any one of the bulbs is missing or burned out, no current will flow and none of the lights will go on. Parallel circuits are like the smaller blood vessels that branch off from an artery and then connect to a vein to return blood to the heart.

How do you add resistors in parallel?

The total resistance of a set of resistors in parallel is found by adding up the reciprocals of the resistance values, and then taking the reciprocal of the total: equivalent resistance of resistors in parallel: 1 / R = 1 / R1 + 1 / R2 + 1 / R3 + A parallel circuit is shown in the diagram above.

What is I in Ohm's law?

A law relating the voltage difference between two points, the electric current flowing between them, and the resistance of the path of the current. Mathematically, the law states that V = IR, where V is the voltage difference, I is the current in amperes, and R is the resistance in ohms.

Why do resistors in parallel have less resistance?

When resistors are connected in parallel, more current flows from the source than would flow for any of them individually, so the total resistance is lower. Each resistor in parallel has the same full voltage of the source applied to it, but divide the total current amongst them.

Which circuit is a series circuit?

A series circuit is one that has more than one resistor, but only one path through which the electricity (electrons) flows. From one end of the cell (battery), the electrons move along one path with NO branches, through the resistors, to the other end of the cell.

What happens if two different voltage sources are connected in parallel?

You will probably be doing damage to the internals of your power supply. If you put the 5V and 12V in parallel, the voltage would be somewhere in between depending on the internal resistance of each source. If both sources have equal internal resistance then the resultant voltage would be 8.5V.

How do you make a parallel circuit?

Method 2Building a Parallel Circuit with Wires and a Switch
  1. Choose this method for a slightly advanced project.
  2. Gather the main components of a parallel circuit.
  3. Prepare your wires.
  4. Connect the first lightbulb to the battery.
  5. Begin to connect the switch to the battery.
  6. Connect the switch to the first lightbulb.

Where are parallel circuits used?

Possibly, the most familiar use of parallel circuits is found in lighting fixtures: if one bulb burns out, the other bulbs in the fixture continue to operate. Other uses include an electronic OR gate, where two switches are in a parallel circuit: one of the switches must be closed for the circuit to function.

What is parallel combination?

A parallel circuit is a closed circuit in which the current divides into two or more paths before recombining to complete the circuit. Each load connected in a separate path receives the full circuit voltage, and the total circuit current is equal to the sum of the individual branch currents.

What is an Open in a circuit?

a) Open circuit means the wires are cut off so there will be no current flow, but there is voltage. b) Closed circuit means the wires are connected so there will be flow of current, but there is no voltage. c) Short circuit also refers closed circuit.

How do electrons flow in a parallel circuit?

In a parallel circuit, the current is divided between the parallel elements such that the node in and out of the parallel components is the same. As a side note the term, electron flow, counter to what mathematically makes sense, is from negative to positive.

What does a parallel circuit look like?

In a parallel circuit, all components are connected across each other, forming exactly two sets of electrically common points. A “branch” in a parallel circuit is a path for electric current formed by one of the load components (such as a resistor).

What are the advantages of a series circuit?

The biggest advantage of a series circuit is that you can add additional power devices, usually using batteries. This will greatly increase the overall force of your output by giving you more power. Your bulbs may not shine as brightly once you have done this, but you probably won't notice the difference.

What are the advantages of parallel circuits?

Most appliances require at least 110 volts of electricity. One of the advantages of parallel circuits is that they ensure all components in the circuit have the same voltage as the source. For instance, all bulbs in a string of lights have the same brightness.

Should I wire lights in series or parallel?

Switches and fuses must be connected through line (Live) wire. Connecting electrical devices and appliances like fan, outlet, light bulbs etc in parallel is a prefer way instead of series wiring. Parallel or series-parallel wiring method is more reliable instead of series wiring.

Why is parallel circuit better than series?

Two bulbs in a simple parallel circuit each enjoy the full voltage of the battery. This is why the bulbs in the parallel circuit will be brighter than those in the series circuit. Another advantage to the parallel circuit is that if one loop is disconnected, then the other remains powered.

What are the characteristics of a series circuit?

Important characteristics of a series circuit are as follows: Any break in the circuit (such as a burned-out light bulb) will render' the entire circuit inoperative. Current (amperage) will be constant throughout the circuit. Total resistance of the circuit is equal to the sum of each individual resistance.

Is voltage higher in series or parallel?

Remember the voltage increases when batteries are in series, but with batteries in parallel this is not the case. When two or more batteries are placed in parallel, the voltage in the circuit is the same as each individual battery.
